Installation of the KACE Energy Corporation GTIAC
system for Ripon Cogeneration

more pictures . .

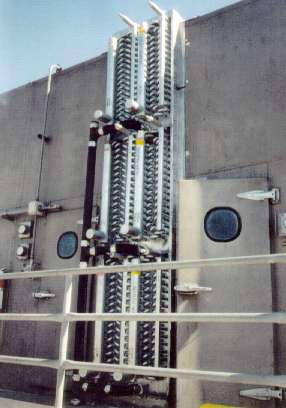

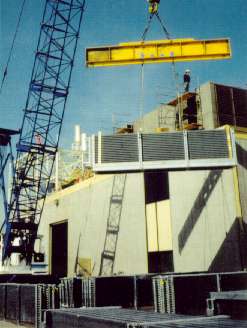

Inlet air box with stack of  coils shown installed,
typical at places inside inlet air box.

Click on thumbnail picture to see larger view

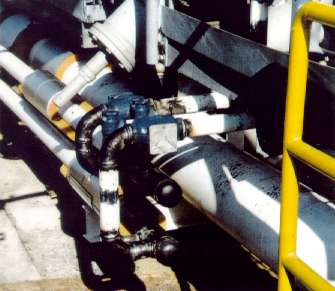

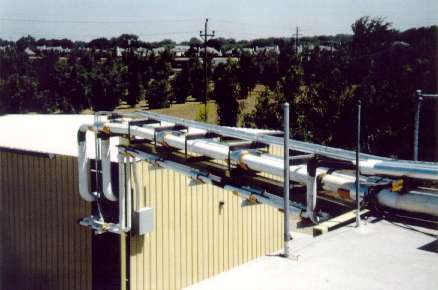

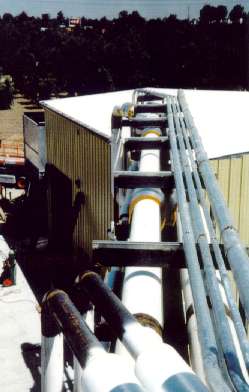

Overhead piping, showing pipe bridge across
driveway area & liquid piping at coil.

Click on thumbnail picture to see larger view

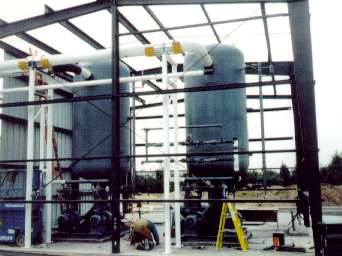

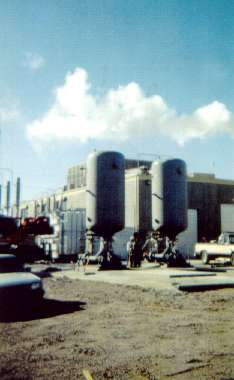

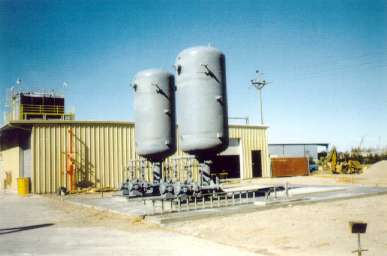

Refrigerant liquid recirculators, installed on new
concrete floor/slab.

Click on thumbnail picture to see larger view

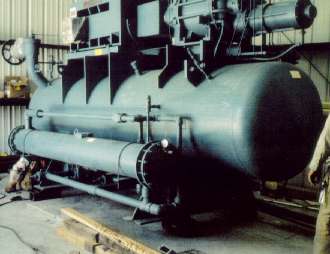

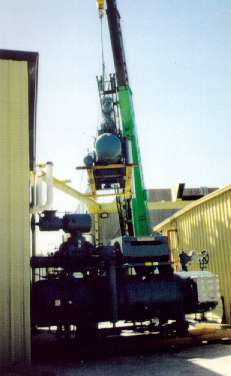

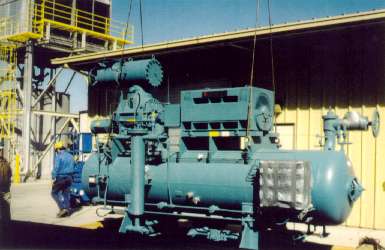

York International/Frick Co. RWB II-270 ammonia
screw compressors with 700 HP Louis Allis,
4160/3/60 motors (USA)

Click on thumbnail picture to see larger view

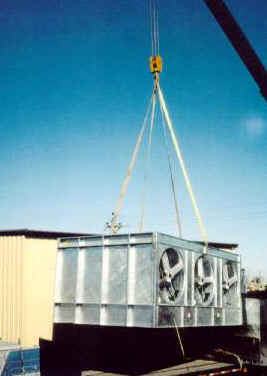

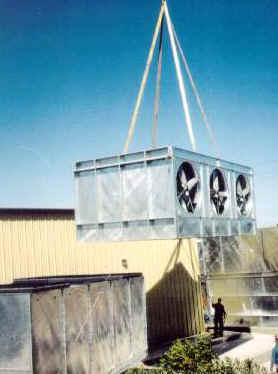

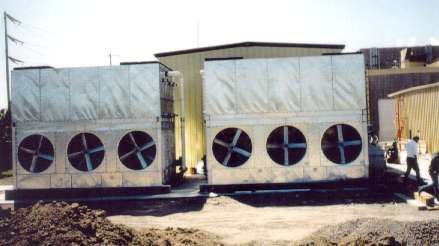

York International/Frick Co./Imeco evaporative
condensers, with fans, 30 HP total (USA)

Click on thumbnail picture to see larger view

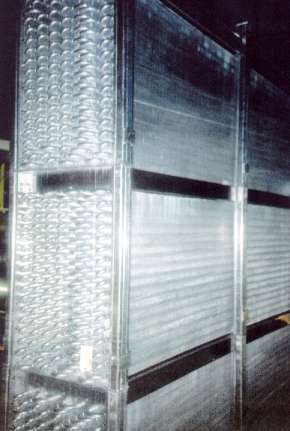

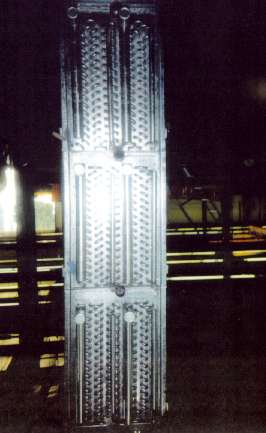

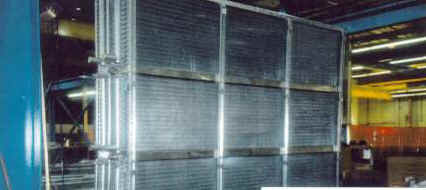

KACE/York International/Frigid Coil GTIAC coils (USA),
all steel construction, hot dipped galvanized after fabrication,
preliminary stacking at Frick/Frigid Coil factory.

Click on thumbnail picture to see larger view
